Plumbed in type water dispensers with filter
CJ-171 series: Plumbed in type LED display water dispensers
Detail

CJ-171: Hot & room temperature & cold water standard pressure type LED display water dispenser.

CJ-173: Hot & warm & cold water heat exchange type LED display water dispenser.

CJ-175: Hot & room temperature & cold water tower no pressure type LED display water dispenser.


Features

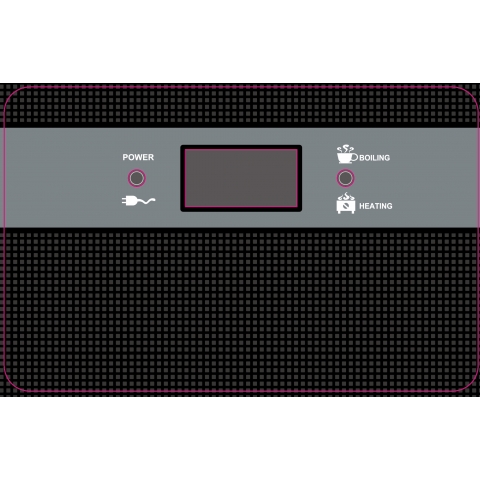

  • New high brightness LED display can show hot water temperature.
  • New cabinet with silver color. The front panel is elegant and beautiful.

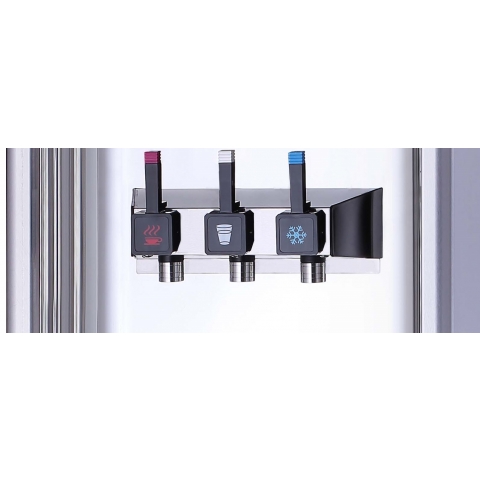

  • New durable faucets. Operation like slot machine which is very convenient for users to get water. Users pull the strong rod to get water. It can continue to flow water if user pull the rod to bottom. Hot water faucet is with safety switch.
  • The panels are made of mirror steel plates (Mirror steel plates are used for many home electric appliances such as refrigerators.).
  • CJ-171 series are durable, water-proof and sunlight-proof. The dispensers remain new after using several years.
  • High effective and quiet working compressor charging with R-134A refrigerant which meet with environment protection.
  • Big water storage capacity.
  • The hot water faucet is with safety lever. It can avoid children scalded by hot water if children use the dispenser carelessly.
  • Long distance between water faucets and water tray, which is convenient for bottle filling.
  • Big water tray which you can put big cup on it. The water tray is made of stainless steel which is firm and durable.
  • Spill-proof design for water tray net, which prevent water from spilling out easily.
  • CJ-171 series are with earth leakage circuit breakers.
  • Filters are built inside (10” 5 micron PP fiber x 1, 10” CTO activated carbon x 1.) (If you want to move out the filters, it is also available.).
  • RO filtration system is optional (When you install RO system to CJ-175, there is no need to put pressure tank.).
  • CJ-173 is with heat exchange system. Warm and cold water are boiled by heater before cooling down. User will not drink any un-boiled water.

Specifications

Model

Type

Dimension

WxDxH(cm)

Power

Water tank capacity

Water capacity

(Tank is full of water)

Water capacity

(Continue use)

CJ-171

Standard pressure type

Hot & room temp. & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 5L
Room temp.: as pressure tank
Cold:
3L
Hot: 13L/hour
Room temp.: un-limited
Cold: 13L/hour
Hot: 8L/hour
Room temp.: un-limited
Cold: 10L/hour

CJ-173

Heat exchange type

Hot & warm & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 10L
Warm: 7.9L
Cold:
3L
Hot: 18L/hour
Warm: 16L/hour
Cold: 13L/hour
Hot: 8L/hour
Warm: 8L/hour
Cold: 10L/hour

CJ-175

Tower no pressure type

Hot & room temp. & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 5L
Room temp.: 16L
Cold:
3L
Hot: 13L/hour
Room temp.: un-limited
Cold: 13L/hour
Hot: 8L/hour
Room temp.: un-limited
Cold: 10L/hour
