Plumbed in type water dispensers with filter
CJ-535F: Plumbed in type digital water dispenser
Detail
CJ-535F: Plumbed in type digital water dispenser.
Features:

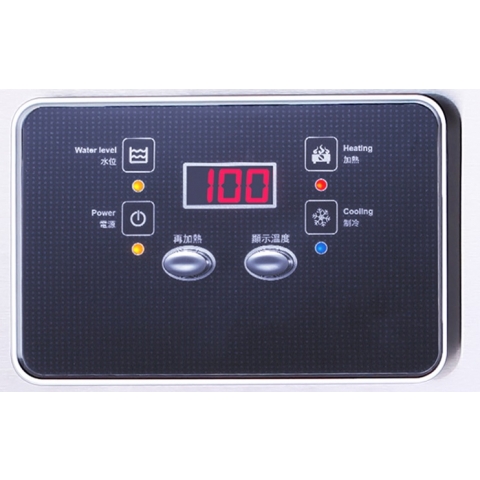

  • New high brightness LED display can show hot water temperature, warm water temperature, cold water temperature.
  • New cabinet with silver color. The front panel is elegant and beautiful.

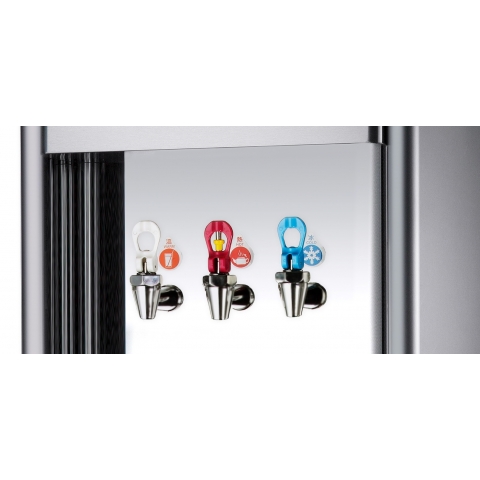

  • Durable faucets. Hot water faucet is with safety switch.
  • The heating and cooling system are controlled by full function digital controller.
  • With the function of automatic detecting water leakage.
  • With the function of automatic recording the setting parameter when power is suddenly off.
  • Water tower no pressure design with automatic water inflow function.

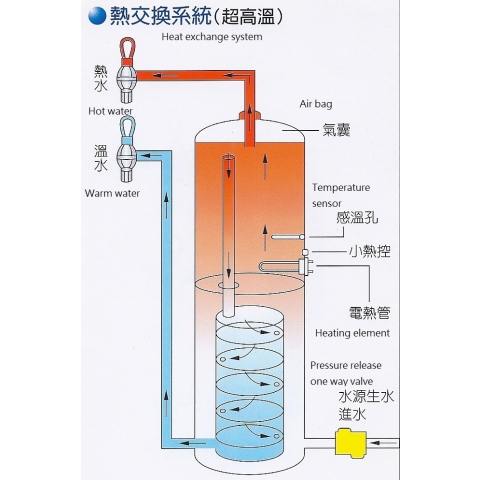

  • With heat exchange system. Warm and cold water are boiled by heater before cooling down. User will not drink any un-boiled water.
  • With re-boil push button which can boil the hot water in short time.
  • With “Power”, “Water Level”, “Heating” and “Cooling” indicator.
  • High brightness LED display can show hot water temperature, room temp. water temperature and cold water temperature.
  • LED can show total using time, so that user can judge the machine using life.
  • Damage code display: If the water level is unusual, the LED will show “105”. If the temp. sensor is unusual, the LED will show “103”.
  • Big water tray which you can put big cup on it.
  • Long distance between water faucets and water tray, which is convenient for bottle filling.
  • Spill-proof design for water tray net, which prevent water from spilling out easily.
  • The front feet are with adjustable screw which can adjust the machine height to fit the ground.
  • High effective and quiet working compressor charging with R-134A refrigerant which meet with environment protection.
  • Big water storage capacity. Big heating tank.
  • The hot water faucet is with safety lever. It can avoid children scalded by hot water if children use the dispenser carelessly.
  • Filters are built inside (10” 5 micron PP fiber x 1, 10” CTO activated carbon x 1.) (If you want to move out the filters, it is also available.).
  • RO filtration system is optional.

Specifications:

Model

Type

Dimension

WxDxH(cm)

Power

Water tank capacity

Water capacity

(Tank is full of water)

Water capacity

(Continue use)

CJ-535F

Digital

Hot & Warm & cold water


43 x 55.5x 142.5

Heating: 750W

Cooling: 190W

Hot: 16.5L
Warm: 7.9L
Cold: 3L
Hot: 24.5L/hour
Warm: 16L/hour
Cold: 13L/hour
Hot: 8L/hour
Warm: 8L/hour
Cold: 10L/hour
