Plumbed in type water dispensers with filter

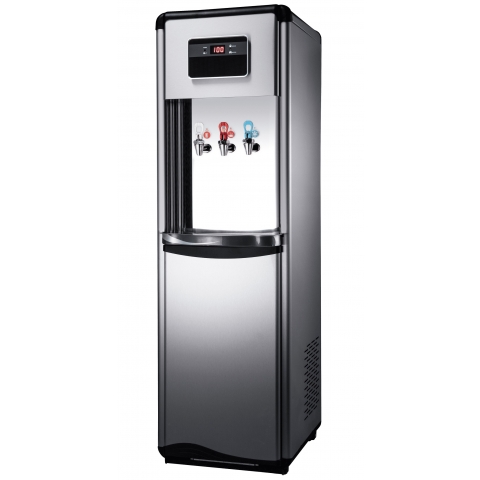

CJ-171F series: Plumbed in type LED display water dispensers
Detail

CJ-171F: Hot & room temperature & cold water standard pressure type LED display water dispenser.

CJ-173F: Hot & warm & cold water heat exchange type LED display water dispenser.

CJ-175F: Hot & room temperature & cold water tower no pressure type LED display water dispenser.



Features

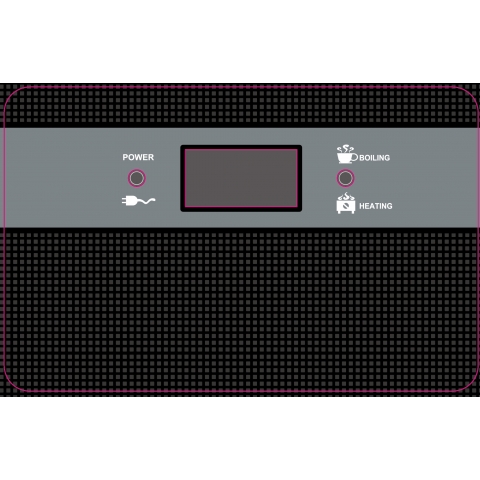

  • New high brightness LED display can show hot water temperature.
  • New cabinet with silver color. The front panel is elegant and beautiful.
  • 3 separated durable faucets.  It can continue to flow water if user pull the rod to bottom. Hot water faucet is with safety switch.
  • The panels are made of mirror steel plates (Mirror steel plates are used for many home electric appliances such as refrigerators.).
  • CJ-171F series are durable, water-proof and sunlight-proof. The dispensers remain new after using several years.
  • High effective and quiet working compressor charging with R-134A refrigerant which meet with environment protection.
  • Big water storage capacity.
  • The hot water faucet is with safety lever. It can avoid children scalded by hot water if children use the dispenser carelessly.
  • Long distance between water faucets and water tray, which is convenient for bottle filling.
  • Big water tray which you can put big cup on it. The water tray is made of stainless steel which is firm and durable.
  • Spill-proof design for water tray net, which prevent water from spilling out easily.
  • CJ-171F series are with earth leakage circuit breakers.
  • Filters are built inside (10” 5 micron PP fiber x 1, 10” CTO activated carbon x 1.) (If you want to move out the filters, it is also available.).
  • RO filtration system is optional (When you install RO system to CJ-175F, there is no need to put pressure tank.).
  • CJ-173F is with heat exchange system. Warm and cold water are boiled by heater before cooling down. User will not drink any un-boiled water.

Specifications

Model

Type

Dimension

WxDxH(cm)

Power

Water tank capacity

Water capacity

(Tank is full of water)

Water capacity

(Continue use)

CJ-171F

Standard pressure type

Hot & room temp. & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 5L
Room temp.: as pressure tank
Cold: 3L
Hot: 13L/hour
Room temp.: un-limited
Cold: 13L/hour
Hot: 8L/hour
Room temp.: un-limited
Cold: 10L/hour

CJ-173F

Heat exchange type

Hot & warm & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 10L
Warm: 7.9L
Cold: 3L
Hot: 18L/hour
Warm: 16L/hour
Cold: 13L/hour
Hot: 8L/hour
Warm: 8L/hour
Cold: 10L/hour

CJ-175F

Tower no pressure type

Hot & room temp. & cold water

43 x 55.5x 142.5 Heating: 750W
Cooling: 190W
Hot: 5L
Room temp.: 16L
Cold: 3L
Hot: 13L/hour
Room temp.: un-limited
Cold: 13L/hour
Hot: 8L/hour
Room temp.: un-limited
Cold: 10L/hour
